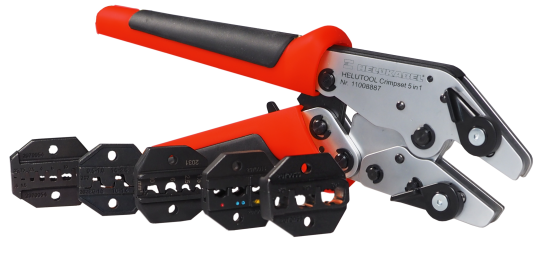

HELUTOOL CRIMPSET 5 IN 1
High-quality crimping tool with 5 inserts for insulated and uninsulated connections
The HELUTOOL Crimpset 5 in 1 by HELUKABEL is as convertible and multifunctional as no other. Thanks to the quick-release fastener, the five different crimp inserts can be exchanged effortlessly and without any tools, depending on your needs. The contour of the crimp inserts are ideally suited for compacted and finely stranded conductors. Additionally, the crimping pliers are the perfect tool for both insulated and non-insulated crimp terminals as well as for uninsulated flat receptacles. The low weight of 1.3 lbs (590 g) and the two-component handle ensure perfect handling.
Advantages
- Fast and easy changing inserts with a quick release fastener — no additional tools needed!
- Locking mechanism with release
- Two-component hand grip
- Crimping dies are designed for fine-wired and compact conductors
- Easy handling through optimized pressing contour
- Length: 9.8 in. (250 mm); weight: 1.3 lbs (590 g)
- High-quality plastic case with foam inlay for storage
Uses
- Crimping insert for insulated cable lugs:
20 - 10 AWG (0.5 - 6 mm2) - Crimping insert for uninsulated cable lugs:
20 - 8 AWG (0.5 - 10 mm2) - Crimping insert for uninsulated female push-on terminal:
20 - 14 AWG (0.5 - 2.5 mm2);
tab width: 3/16 in (4.8 mm) & 1/4 in (6.3 mm) - Crimping insert for wire ferrules:
24 - 6 AWG (0.25 - 16 mm2);
also for fine-wire and compact conductors - Crimping insert for wire ferrules:
4 - 1 AWG (25 - 50 mm2);
also for fine-wire and compact conductors
